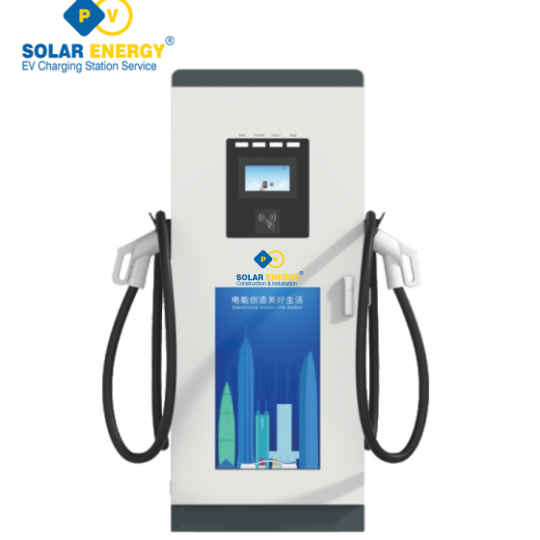

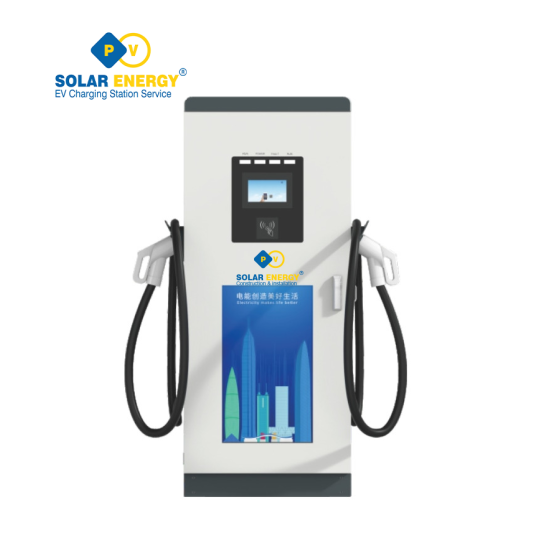

BỘ SẠC_DC EV Charger_30KW/40KW/50KW/60KW/80KW/120KW
-Chúng thích hợp cho những trạm sạc đặc biệt của thành phố cung cấp dịch vụ sạc cho xe buýt, taxi, phương tiện dịch vụ công cộng, phương tiện vệ sinh, phương tiện hậu cần, v.v.; các trạm sạc công cộng của thành phố cung cấp sạc cho ô tô cá nhân, người đi lại, xe buýt; trạm sạc đường cao tốc liên tỉnh và những dịp khác cần sạc nhanh DC .
-They are suitable for occasions such as city special charging stations that provide charging for bus, taxi, public service vehicles, sanitation vehicles,logistics vehicles, etc.; city public charging stations that provide charging for private cars, commuter, bus; intercity highway charging stations and other occasions that need special DC fast charging.
| Power | 30KW/40KW/50KW/60KW/80KW/90KW/100KW/120KW |
|---|---|
| Display | 7 Inches Touch Screen with Shell |
| Installation | Ground-Mounted |
| Equipment size | L700*W450*H1680(mm) |
| Input voltage range | AC380V±15% |
| Output current range | 125 Amp/150 Amp/200 Amp |
| Output voltage range | DC200-750V / DC150-500V(JIS) |
| IP rating | IP 54 |
| Working Temp | -25 to 55°C |
| protocol | OCPP 1.6J Protocol (Optional) |
| Network selection | Ethernet/3G/4G/WIFI (Optional) |
| Protect |
Over Current, Over Voltage, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc. |
|
Parameters |
Requirements |
|||||
|
General Requirements |
||||||
|
EV Charger Type |
DC |
|||||
|
Charger Capacity |
30KW |
40KW |
50KW/60KW |
80KW |
90KW/100KW |
120KW |
|
Equipment size |
L700*W450*H1680(mm) |
|||||
|
Product Model NO. |
ENC-DCL030A |
ENC-DCL040A/B |
ENC-DCL060A/B |
ENC-DCL080B |
ENC-DCL100B |
ENC-DCL120B |
|
ANSI-DCL030A |
ANSI-DCL040A/B |
ANSI-DCL060A/B |
ANSI-DCL080B |
ANSI-DCL100B |
ANSI-DCL120B |
|
|
JIS-DCL030A |
JIS-DCL040A/B |
JIS-DCL060A/B |
JIS-DCL080B |
JIS-DCL100B |
JIS-DCL120B |
|
|
Mounting |
Ground-Mounted |
|||||
|
Input Requirements |
||||||
|
AC Supply System |
Three-Phase, 5 Wire AC system |
|||||
|
Nominal Input Voltage |
AC380V±15% |
|||||
|
Input Frequency |
45-65Hz |
|||||
|
Environmental Requirements |
||||||
|
Ambient Temperature Range |
-25 to 55°C |
|||||
|
Ambient Humidity |
5 to 95% |
|||||
|
Storage Temperature |
-40 to 70°C |
|||||
|
Mechanical Requirements |
||||||
|
IP Ratings |
IP 54 |
|||||
|
Cooling |
Air-cooled |
|||||
|
Output Requirements |
||||||
|
Number of Outputs |
1 |
1 or 2 |
2 |
|||
|
Type of Each Output |
DC200-750V ; DC150-500V(JIS) |
|||||
|
Single Output Max.Current |
125 Amp |
150 Amp |
200 Amp |
|||
|
Power Factor |
≥0.99(50% load above) |
|||||
